Spectral Indices
NDVI - Normalized Difference Vegetation Index
NDVI is used to outline the presence of vegetation. It is used to indicate relative density, or the amount, of the green vegetation present in the image. This index uses reflectance from a red band around 0.66 μm and a near-Infrared band around 0.86 μm. The red band is found in the absorption region of the chlorophyll, while the near-IR band is used in high reflectance plateau of the vegetation canopies. These two bands sense different depths over the vegetation canopies.
\(NDVI = \frac{NIR - RED}{NIR + RED} = \frac{B08 - B04}{B08 + B04}\)
NDWI - Normalized Difference Water Index
NDWI concept as formulated by Gao combining reflectance of NIR and SWIR has a wide range of application. It can be used for exploring water content at single leaf level as well as canopy/satellite level. The range of application of NDWI spreads from agricultural monitoring for crop irrigation and pasture management to forest monitoring for assessing fire risk and live fuel moisture particularly relevant in the context of climate change.
\(NDWI = \frac{NIR - SWIR}{NIR + SWIR} = \frac{B08 - B11}{B08 + B11}\)
NDSI - Normalized Difference Snow Index
NDSI is used to delineate the presence of snow/ice. It is a standardized ratio of the difference in the reflectance in the bands that take advantage of unique signature and the spectral difference to indicate snow from the surrounding features and even clouds.
\(NDSI = \frac{GREEN - SWIR}{GREEN + SWIR} = \frac{B03 - B11}{B03 + B11}\)
NBR - Normalized Burn Ratio
To detect burned areas, the NBR index is the most appropriate choice. Using bands 8 and 12 it highlights burnt areas in large fire zones greater than 500 acres. To observe burn severity, you may subtract the post-fire NBR image from the pre-fire NBR image.
The NIR and SWIR parts of the electromagnetic spectrum are a powerful combination of bands to use for this index given vegetation reflects strongly in the NIR region of the electromagnetic spectrum and weekly in the SWIR. Alternatively, it has been shown that a fire scar which contains scarred woody vegetation and earth will reflect more strongly in the SWIR part of the electromagnetic spectrum and beyond (see figure below).
\(NBR = \frac{NIR - SWIR}{NIR + SWIR} = \frac{B08 - B12}{B08 + B12}\)
For a given area, NBR is calculated from an image just prior to the burn and a second NBR is calculated for an image immediately following the burn. Burn extent and severity is judged by taking the difference between these two index layers:
\(dNBR = NBR_{prefire} - NBR_{postfire}\)
BAIS2 - Burned Area Index for Sentinel-2
BAIS2 adapts the traditional BAI for Sentinel-2 bands, taking advantage of the wider spectrum of Visible, Red-Edge, NIR and SWIR bands.
Values description: The range of values for the BAIS2 is -1 to 1 for burn scars, and 1 - 6 for active fires. Different fire intensities may result in different thresholds, the current values were calibrates, as per original author, on mostly Mediterranen regions.
\(BAIS2 = \left(1-\sqrt{\frac{B06*B07*B8A}{B4}}\right) *\left(\frac{B12-B8A}{\sqrt{B12+B8A}}+1\right)\)
BRIGHTNESS
Brightness provide complementary information improving the discrimination between crop and no-crop areas.
\(Brightness = \sqrt{GREEN^{2}+RED^{2}+NIR^{2}+SWIR^{2}} = \sqrt{B03^{2}+B04^{2}+B08^{2}+B11^{2}}\)
SWI - Surface Waterproofing Index
SWI, based on NDVI and NDWI, is a useful tool for monitoring waterproofing.
\(SWI = (NDVI - NDWI)^2\)
[1]:
import glob, os
import numpy as np
import pandas as pd
import rasterio
import rasterio.plot
import matplotlib.pyplot as plt
from pathlib import Path
print('All libraries successfully imported!')
All libraries successfully imported!
Set the index name you want to compute !
NDVI
NDWI
NDSI
BRIGHTNESS
NBR
BAIS2
SWI
[2]:
index_name = 'NDVI'
nodata_val = -10000
print(f'You chose to compute {index_name} !')
You chose to compute NDVI !
Set directory
[7]:
computer_path = 'X:/'
grp_nb = '99'
# Directory for all work files
work_path = f'{computer_path}STUDENTS/GROUP_{grp_nb}/TP/'
reflectance_path = f'{work_path}3_L2A_MASKED/'
index_path = f'{work_path}{index_name}/'
index_calc_path = f'{work_path}{index_name}_CALC/'
Path(index_path).mkdir(parents=True, exist_ok=True)
Path(index_calc_path).mkdir(parents=True, exist_ok=True)
What do you need to compute the selected spectral indices ?
[8]:
if index_name == 'NDVI':
bands_needed = ['B04','B08']
list_im_path = [reflectance_path,
reflectance_path]
elif index_name == 'NDWI':
bands_needed = ['B08','B11']
list_im_path = [reflectance_path,
reflectance_path]
elif index_name == 'NDSI':
bands_needed = ['B03','B11']
list_im_path = [reflectance_path,
reflectance_path]
elif index_name == 'BRIGHTNESS':
bands_needed = ['B03','B04','B08','B11']
list_im_path = [reflectance_path,
reflectance_path,
reflectance_path,
reflectance_path]
elif index_name == 'NBR':
bands_needed = ['B08','B12']
list_im_path = [reflectance_path,
reflectance_path]
elif index_name == 'BAIS2':
bands_needed = ['B04','B06','B07','B8A','B12']
list_im_path = [reflectance_path,
reflectance_path,
reflectance_path,
reflectance_path]
elif index_name == 'SWI':
bands_needed = ['NDVI','NDWI']
list_im_path = [f'{work_path}NDVI/',
f'{work_path}NDWI/']
print(f'To compute {index_name} you need : {bands_needed}')
To compute NDVI you need : ['B04', 'B08']
Check if you have the necessary spectral bands
[17]:
for i,band in enumerate(bands_needed):
print(f'We need band/index {band} to compute {index_name}')
list_im = glob.glob(f'{list_im_path[i]}*{band}*.tif')
nb_im = len(list_im)
print(f'--> {nb_im} images are found \n')
print('Check if the number of images found for each band/index is the same !!')
We need band/index B04 to compute NDVI
--> 12 images are found
We need band/index B08 to compute NDVI
--> 12 images are found
Check if the number of images found for each band/index is the same !!
Compute spectral index selected for all images
[31]:
# The purpose of this loop is to compute the spectral index for all the images of the timeserie
for i in range(0,nb_im):
# Find the image filename and the associated date (available in the filename)
im = sorted(glob.glob(f'{list_im_path[0]}*{bands_needed[0]}*.tif'))[i]
date = os.path.basename(im)[7:15]
print(f'Date : {date}')
# Start a list to gather all the spectral bands you will need to compute the spectral index
list_im = [im]
# Then we need to find the other spectral band needed to compute the spectral index and add it to the list
for n,band in enumerate(bands_needed[1:]):
im = glob.glob(f'{list_im_path[n+1]}*{date}*{band}*.tif')[0]
list_im.append(im)
# Name the output spectral indice file
index_file = f'{index_path}{os.path.basename(list_im[0])[0:22]}_{index_name}.tif'
# If the spectral index for this data does not exist --> create it
if not os.path.isfile(index_file):
# Create a list with all reflectance images needed to compute the spectral index in Numpy array
list_im_arr = []
for im_file in list_im:
# Open band and update metadata
src = rasterio.open(im_file, 'r')
profile = src.profile
profile.update(dtype=rasterio.float64)
im = src.read(1)
# Convert no-data value into Numpy NaN
im = im.astype(float)
im[im == nodata_val] = np.nan
src.close()
list_im_arr.append(im)
# Compute the Spectral Index you have selected
if index_name == 'NDVI':
red = list_im_arr[0] # B04
nir = list_im_arr[1] # B08
index_arr = (nir - red) / (nir + red)
elif index_name == 'NDWI':
nir = list_im_arr[0] # B08
swir = list_im_arr[1] # B11
index_arr = (nir - swir) / (nir + swir)
elif index_name == 'NDSI':
green = list_im_arr[0] # B03
swir = list_im_arr[1] # B11
index_arr = (green - swir) / (green + swir)
elif index_name == 'NBR':
nir = list_im_arr[0] # B08
swir = list_im_arr[1] # B12
index_arr = (nir - swir) / (nir + swir)
elif index_name == 'BRIGHTNESS':
green = list_im_arr[0] # B03
red = list_im_arr[1] # B04
nir = list_im_arr[2] # B08
swir = list_im_arr[3] # B11
index_arr = np.sqrt(np.square(green) + np.square(red) + np.square(nir) + np.square(swir))
elif index_name == 'BAIS2':
red = list_im_arr[0] # B04
redEdge_B6 = list_im_arr[1] # B06
redEdge_B7 = list_im_arr[2] # B07
nir = list_im_arr[3] # B08
swir = list_im_arr[4] # B12
index_arr = (1-np.sqrt((redEdge_B6*redEdge_B7*nir)/red))*((swir-nir)/(np.sqrt(swir+nir))+1)
elif index_name == 'SWI':
ndvi = list_im_arr[0] # NDVI
ndwi = list_im_arr[1] # NDWI
index_arr = np.square(ndvi - ndwi)
# Write Spectral Index image into GeoTIFF
dst = rasterio.open(index_file, "w", **profile)
dst.write(index_arr,1)
dst.close()
print(f'A new {index_name} file is created : {index_file}')
print(f'--> All {index_name} are computed !')
Date : 20200116
A new NDVI file is created : /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI/T31UFS_20200116T105309_NDVI.tif
Date : 20200212
/tmp/ipykernel_33903/800600115.py:49: RuntimeWarning: invalid value encountered in divide
index_arr = (nir - red) / (nir + red)
A new NDVI file is created : /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI/T31UFS_20200212T104049_NDVI.tif
Date : 20200316
A new NDVI file is created : /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI/T31UFS_20200316T104709_NDVI.tif
Date : 20200417
A new NDVI file is created : /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI/T31UFS_20200417T104021_NDVI.tif
Date : 20200520
A new NDVI file is created : /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI/T31UFS_20200520T105031_NDVI.tif
Date : 20200621
A new NDVI file is created : /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI/T31UFS_20200621T103629_NDVI.tif
Date : 20200719
A new NDVI file is created : /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI/T31UFS_20200719T105031_NDVI.tif
Date : 20200813
A new NDVI file is created : /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI/T31UFS_20200813T104629_NDVI.tif
Date : 20200914
A new NDVI file is created : /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI/T31UFS_20200914T104031_NDVI.tif
Date : 20201019
A new NDVI file is created : /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI/T31UFS_20201019T103959_NDVI.tif
Date : 20201118
A new NDVI file is created : /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI/T31UFS_20201118T104329_NDVI.tif
Date : 20201218
A new NDVI file is created : /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI/T31UFS_20201218T104349_NDVI.tif
--> All NDVI are computed !

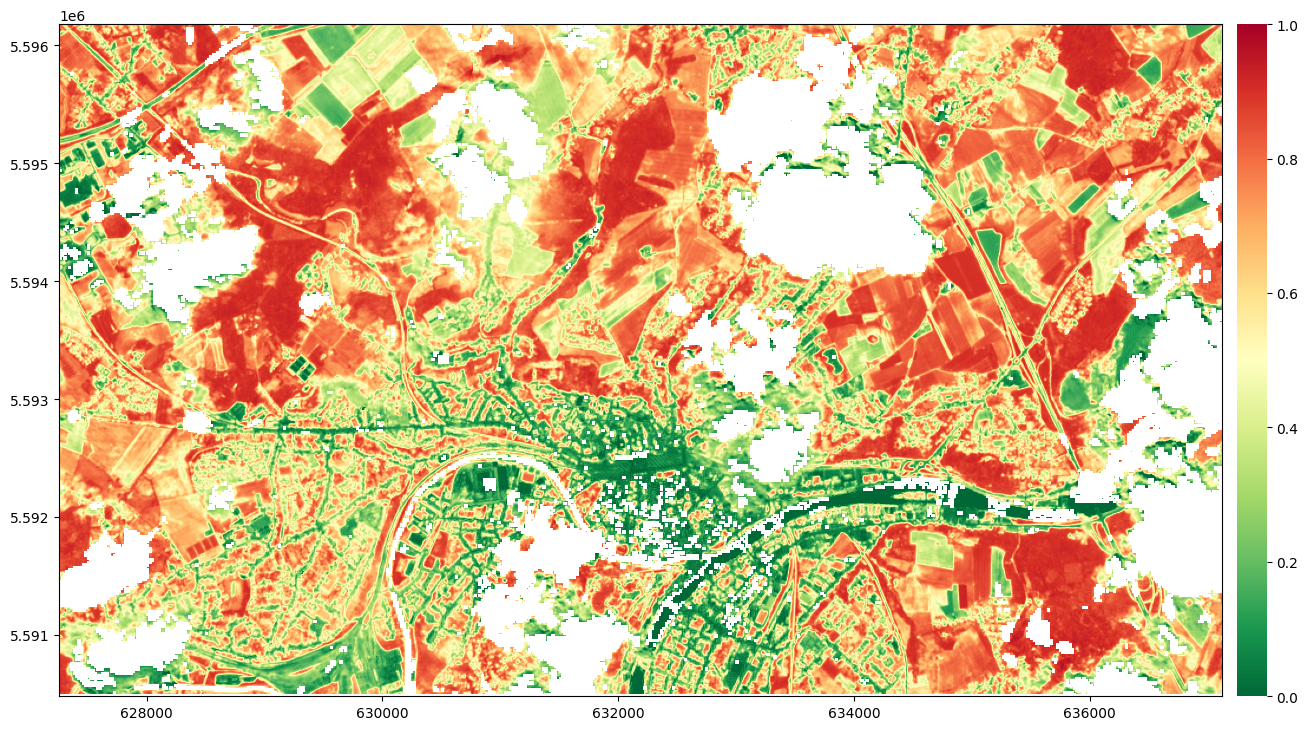

Plot Spectral Index of a single date
Open spectral index file with rasterio
[21]:
date = '20200621'
im_file = glob.glob(f'{index_path}*{date}*.tif')[0]
print(im_file)
src = rasterio.open(im_file, "r")
/export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI/T31UFS_20200621T103629_NDVI.tif
[22]:
fig, ax = plt.subplots(1, 1, figsize=(15,15))
color_map = plt.cm.get_cmap("RdYlGn")
reversed_color_map = color_map.reversed()
im_rio = rasterio.plot.show(src, cmap=reversed_color_map, vmin=0, vmax=1, ax=ax)
im_rio = im_rio.get_images()[0]
cax = fig.add_axes([ax.get_position().x1+0.01,ax.get_position().y0,0.02,ax.get_position().height])
plt.colorbar(im_rio, ax=ax, cax=cax)
plt.box(False)
Compute difference between 2 spectral indices
[23]:
# Choose the two dates you want to subtract
date_1 = '20200116'
date_2 = '20201218'
[24]:
# Get the spectral indices associated with the dates you have chosen
index_file_1 = glob.glob(f'{index_path}*{date_1}*.tif')[0]
index_file_2 = glob.glob(f'{index_path}*{date_2}*.tif')[0]
# Name the output index file
index_file_diff = f'{index_calc_path}{index_name}_{date_2}_MINUS_{date_1}.tif'
if not os.path.isfile(index_file_diff):
# Open the spectral index at date 1
src = rasterio.open(index_file_1, 'r')
profile = src.profile
date_1_arr = src.read(1)
src.close()
# Open the spectral index at date 2
src = rasterio.open(index_file_2, 'r')
date_2_arr = src.read(1)
src.close()
# Compute the difference between date 2 and date 1
diff_index = date_2_arr - date_1_arr
# Write the output in GeoTIFF
dst = rasterio.open(index_file_diff, "w", **profile)
dst.write(diff_index,1)
dst.close()
print(f'A new {index_file_diff} file is created : {index_file_diff}')
else:
print(f'--> {index_file_diff} - already exists')
A new /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI_CALC/NDVI_20201218_MINUS_20200116.tif file is created : /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/NDVI_CALC/NDVI_20201218_MINUS_20200116.tif
Plot difference between 2 spectral indices
[30]:
fig, ax = plt.subplots(1, 1, figsize=(15,15))
color_map = plt.cm.get_cmap("bwr")
src = rasterio.open(index_file_diff, "r")
im_rio = rasterio.plot.show(src, cmap=color_map, vmin=-1, vmax=1, ax=ax)
im_rio = im_rio.get_images()[0]
cax = fig.add_axes([ax.get_position().x1+0.01,ax.get_position().y0,0.02,ax.get_position().height])
plt.colorbar(im_rio, ax=ax, cax=cax)
plt.box(False)
