In situ split calibration-validation

This script allows to separate the in situ polygons into a calibration set and a validation set. The user has to choose what percentage of pixels per class he wants to keep for calibration (pc_cal). The remaining pixels will be used to validate the classification.

Note that the script takes into account the fact that there cannot be calibration and validation pixels in the same polygon. If a pixel of a polygon is used for the calibration of the model, all the other pixels of this polygon are also used.

[29]:

import pandas as pd
import geopandas as gpd
import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
import numpy as np
from collections import defaultdict
from pathlib import Path

Set directory

[30]:

computer_path = 'X:/'
grp_nb        = '99'

# Directory for all work files
work_path = f'{computer_path}STUDENTS/GROUP_{grp_nb}/'

in_situ_prepro_path  = f'{work_path}B_IN_SITU_PREPRO/'
in_situ_cal_val_path = f'{work_path}C_IN_SITU_CAL_VAL/'

Path(in_situ_cal_val_path).mkdir(parents=True, exist_ok=True)

Set parameters

[35]:

site = 'NAMUR'
year = '2020'

field_classif_code = 'grp_1_nb'
field_classif_name = 'grp_1'

pc_cal = 75
pc_val = 100-pc_cal

Set filenames

[36]:

# Input file
in_situ_prepared_shp = f'{in_situ_prepro_path}{site}_{year}_IN_SITU_ROI_prepared.shp'

# Output files
in_situ_cal_shp = f'{in_situ_cal_val_path}{site}_{year}_IN_SITU_ROI_CAL_{pc_cal}pc.shp'
in_situ_val_shp = f'{in_situ_cal_val_path}{site}_{year}_IN_SITU_ROI_VAL_{pc_val}pc.shp'

print(in_situ_cal_shp)
print(in_situ_val_shp)

/export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/C_IN_SITU_CAL_VAL/NAMUR_2020_IN_SITU_ROI_CAL_75pc.shp
/export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/C_IN_SITU_CAL_VAL/NAMUR_2020_IN_SITU_ROI_VAL_25pc.shp

1. Open in situ data prepared

[37]:

gdf = gpd.read_file(in_situ_prepared_shp)

display(gdf.head())

	id	lc_nb	lc	grp_nb	grp	class_nb	class	sub_nb	sub	grp_1_nb	grp_1	grp_A_nb	grp_A	area	pix_count	geometry
0	4	3	Grassland and meadows	31	Grassland and meadows	319	Grassland and meadows	3199	Grassland and meadows	3	Grassland and meadows	3	Grassland and meadows	1735	17	MULTIPOLYGON (((630003.573 5594258.004, 630003...
1	5	3	Grassland and meadows	31	Grassland and meadows	319	Grassland and meadows	3199	Grassland and meadows	3	Grassland and meadows	3	Grassland and meadows	14331	146	POLYGON ((636962.589 5595674.757, 636966.536 5...
2	6	3	Grassland and meadows	31	Grassland and meadows	319	Grassland and meadows	3199	Grassland and meadows	3	Grassland and meadows	3	Grassland and meadows	1768	18	POLYGON ((635692.119 5593303.601, 635688.405 5...
3	7	3	Grassland and meadows	31	Grassland and meadows	319	Grassland and meadows	3199	Grassland and meadows	3	Grassland and meadows	3	Grassland and meadows	7828	79	POLYGON ((627911.368 5595749.375, 627942.033 5...
4	9	3	Grassland and meadows	31	Grassland and meadows	319	Grassland and meadows	3199	Grassland and meadows	3	Grassland and meadows	3	Grassland and meadows	3197	39	POLYGON ((633236.525 5596165.100, 633397.286 5...

2. Add number of pixel of each class for each polygons

crop_pixel : sum of all pixels belonging of all polygons of a given class

All polygons from a same class will have the same pixel ratio !

[39]:

gdf['crop_pix'] = gdf.groupby(field_classif_code)['pix_count'].transform('sum')

df = gdf[[field_classif_code,field_classif_name,'crop_pix']].drop_duplicates().sort_values('crop_pix', ascending=False)

df

[39]:

	grp_1_nb	grp_1	crop_pix
221	1111	Winter wheat	29633
0	3	Grassland and meadows	23889
295	1121	Maize	8667
331	1811	Sugar beet	7400
352	1152	Barley six-row	6659
441	1511	Potatoes	6439
376	1192	Other cereals	6117
411	1771	Peas	3606
502	69	Forest	3109
401	1923	Flax hemp and other similar crops	2810
455	21	Fruits trees	2239
421	1435	Rapeseed	1826
466	81	Urban	1795
409	121	Leafy or stem vegetables	1351
393	1171	Oats	776
434	1911	Alfalfa	554
429	84	Greenhouses	252
462	9212	Permanent rivers and streams	208
372	22	Vineyards	178

3. Split polygons in training and validation datasets

[40]:

training_pixels = defaultdict(lambda: 0)
training_target = {}

cal_id_list = []
val_id_list = []

gdf_shuffle = gdf.sample(len(gdf), random_state=1)  # Shuffle geodataframe randomly

for i, row in gdf_shuffle.iterrows():

    id          = row['id']
    crop_code   = row[field_classif_code]
    crop_pix    = row['crop_pix']
    pix_count   = row['pix_count']

    crop_target = pc_cal/100 * crop_pix
    training_target[crop_code] = crop_target

    pixels = training_pixels[crop_code]

    if pixels + pix_count <= crop_target:  # If below crop target, add polygons in training set
        training_pixels[crop_code] = pixels + pix_count  # Update number of training pixels by crop code
        purpose = 0  # calibration
    else:                                  # If over crop target, add polygons in validation set
        purpose = 1  # validation because "crop target" is reached

    if purpose == 0:
        cal_id_list.append(id)
    else:
        val_id_list.append(id)


print(f'Number of polygons for training   : {len(cal_id_list)}')
print(f'Number of polygons for validation : {len(val_id_list)}')

cal_gdf = gdf[gdf['id'].isin(cal_id_list)]

val_gdf = gdf[gdf['id'].isin(val_id_list)]

Number of polygons for training   : 423
Number of polygons for validation : 114

Get summary of the CAL/VAL splitting

[27]:

# Get number of pixels per class

pix_per_class_cal_df = cal_gdf.groupby([field_classif_code, field_classif_name])['pix_count'].agg('sum').to_frame().reset_index()
pix_per_class_cal_df = pix_per_class_cal_df.sort_values(by='pix_count', ascending=False)
pix_per_class_cal_df = pix_per_class_cal_df.rename(columns={"pix_count": "CAL_pix"})

pix_per_class_val_df = val_gdf.groupby([field_classif_code, field_classif_name])['pix_count'].agg('sum').to_frame().reset_index()
pix_per_class_val_df = pix_per_class_val_df.sort_values(by='pix_count', ascending=False)
pix_per_class_val_df = pix_per_class_val_df.rename(columns={"pix_count": "VAL_pix"})

# Get number of polygons per class

poly_per_class_cal_df = cal_gdf.groupby([field_classif_code, field_classif_name])[field_classif_code].agg('count').reset_index(name='poly_count')
poly_per_class_cal_df = poly_per_class_cal_df.sort_values(by='poly_count', ascending=False)
poly_per_class_cal_df = poly_per_class_cal_df.rename(columns={"poly_count": "CAL_poly"})

poly_per_class_val_df = val_gdf.groupby([field_classif_code, field_classif_name])[field_classif_code].agg('count').reset_index(name='poly_count')
poly_per_class_val_df = poly_per_class_val_df.sort_values(by='poly_count', ascending=False)
poly_per_class_val_df = poly_per_class_val_df.rename(columns={"poly_count": "VAL_poly"})


# Merge 2 previous dataframe in a single one
#pix_poly_per_class_df = pix_per_class_cal_df.merge(poly_per_class_df, on=[field_classif_code, field_classif_name], how="outer")


# Merge 4 previous dataframe in a single one
summary_df = pix_per_class_cal_df.merge(pix_per_class_val_df,on=[field_classif_code, field_classif_name]).merge(poly_per_class_cal_df,on=[field_classif_code, field_classif_name]).merge(poly_per_class_val_df,on=[field_classif_code, field_classif_name])

display(summary_df)

	grp_1_nb	grp_1	CAL_pix	VAL_pix	CAL_poly	VAL_poly
0	1111	Winter wheat	22187	7446	56	18
1	3	Grassland and meadows	17914	5975	176	45
2	1121	Maize	6477	2190	26	10
3	1811	Sugar beet	5416	1984	15	6
4	1152	Barley six-row	4958	1701	17	3
5	1511	Potatoes	4826	1613	12	2
6	1192	Other cereals	4434	1683	12	5
7	1771	Peas	2454	1152	8	2
8	69	Forest	2314	795	31	4
9	1923	Flax hemp and other similar crops	2074	736	7	1
10	21	Fruits trees	1551	688	6	1
11	81	Urban	1344	451	29	7
12	1435	Rapeseed	1176	650	4	2
13	121	Leafy or stem vegetables	571	780	3	1
14	1171	Oats	549	227	7	1
15	1911	Alfalfa	406	148	5	2
16	84	Greenhouses	183	69	3	2
17	9212	Permanent rivers and streams	152	56	3	1
18	22	Vineyards	131	47	3	1

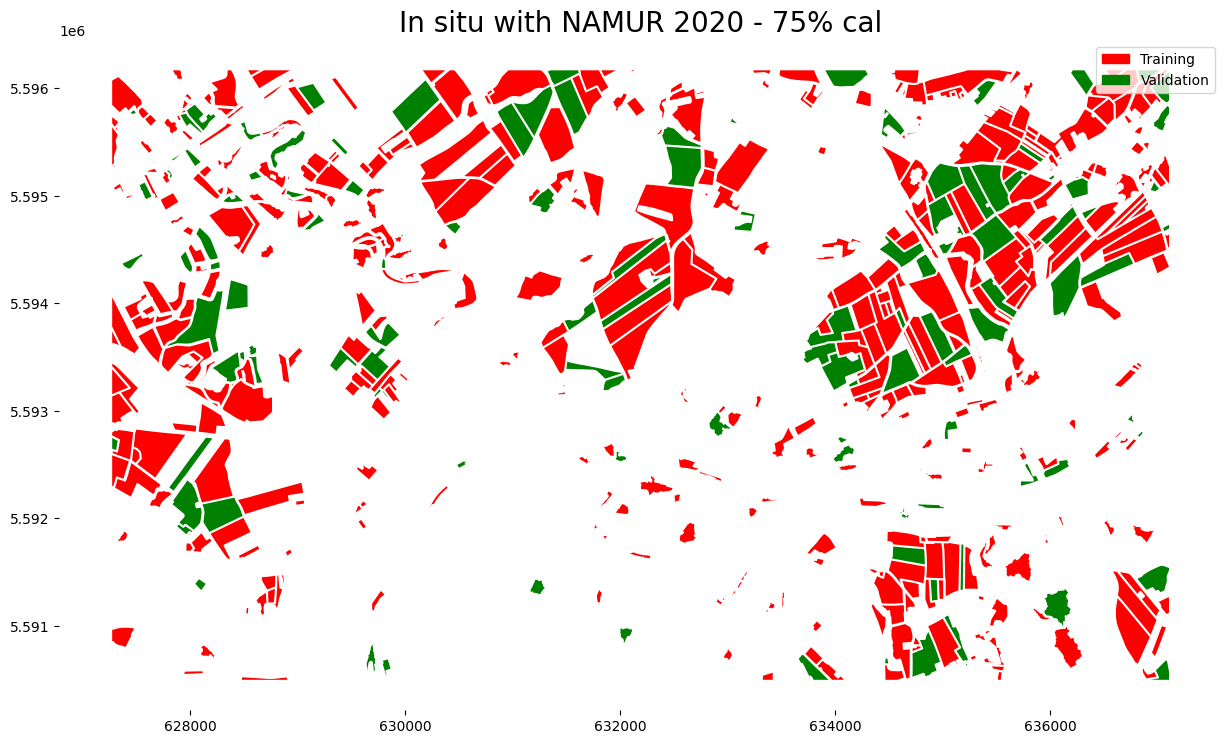

Plot calibration and validation in situ data

[42]:

fig, ax = plt.subplots(1, 1, figsize=(15,15))

cal_gdf.plot(ax=ax,
            color='red')

val_gdf.plot(ax=ax,
            color='green')

ax.set_title(f'In situ with {site} {year} - {pc_cal}% cal',fontsize=20)

cal_patch = mpatches.Patch(color='red', label='Training')
val_patch = mpatches.Patch(color='green', label='Validation')

plt.legend(handles=[cal_patch, val_patch])

plt.box(False)

../_images/classification_in_situ_split_cal_val_17_0.png

Write geodataframe into a shapefile

[43]:

cal_gdf.to_file(in_situ_cal_shp)
val_gdf.to_file(in_situ_val_shp)

print(f'Two shapefiles have been created :\n {in_situ_cal_shp} \n {in_situ_val_shp}')

Two shapefiles have been created :
 /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/C_IN_SITU_CAL_VAL/NAMUR_2020_IN_SITU_ROI_CAL_75pc.shp
 /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/C_IN_SITU_CAL_VAL/NAMUR_2020_IN_SITU_ROI_VAL_25pc.shp
