In situ split calibration-validation with complex strategies (optional)

[2]:

import pandas as pd
import geopandas as gpd
import matplotlib.pyplot as plt
import matplotlib.patches as mpatches
import numpy as np
import plotly.express as px
from collections import defaultdict
from pathlib import Path

Set directory

[3]:

computer_path = '/export/miro/ndeffense/LBRAT2104/'
grp_nb        = '99'

# Directory for all work files
work_path = f'{computer_path}STUDENTS/GROUP_{grp_nb}/TP/'

in_situ_prepro_path  = f'{work_path}B_IN_SITU_PREPRO/'
in_situ_cal_val_path = f'{work_path}C_IN_SITU_CAL_VAL/'

Path(in_situ_cal_val_path).mkdir(parents=True, exist_ok=True)

Set parameters

[4]:

site = 'NAMUR'
year = '2020'

field_classif_code = 'grp_1_nb'
field_classif_name = 'grp_1'

pix_best = 10
pix_ratio_threshold = 0.05

sample_ratio_hi = 0.25
sample_ratio_lo = 0.75

Set filenames

[5]:

# Input file
in_situ_prepared_shp = f'{in_situ_prepro_path}{site}_{year}_IN_SITU_ROI_prepared.shp'

# Output files
in_situ_cal_shp = f'{in_situ_cal_val_path}{site}_{year}_IN_SITU_ROI_CAL.shp'
in_situ_val_shp = f'{in_situ_cal_val_path}{site}_{year}_IN_SITU_ROI_VAL.shp'

1. Open in situ data prepared

[6]:

gdf = gpd.read_file(in_situ_prepared_shp)

display(gdf.head())
id lc_nb lc grp_nb grp class_nb class sub_nb sub grp_1_nb grp_1 grp_A_nb grp_A area pix_count geometry
0 4 3 Grassland and meadows 31 Grassland and meadows 319 Grassland and meadows 3199 Grassland and meadows 3 Grassland and meadows 3 Grassland and meadows 1735 17 MULTIPOLYGON (((630003.573 5594258.004, 630003...
1 5 3 Grassland and meadows 31 Grassland and meadows 319 Grassland and meadows 3199 Grassland and meadows 3 Grassland and meadows 3 Grassland and meadows 14331 146 POLYGON ((636962.589 5595674.757, 636966.536 5...
2 6 3 Grassland and meadows 31 Grassland and meadows 319 Grassland and meadows 3199 Grassland and meadows 3 Grassland and meadows 3 Grassland and meadows 1768 18 POLYGON ((635692.119 5593303.601, 635688.405 5...
3 7 3 Grassland and meadows 31 Grassland and meadows 319 Grassland and meadows 3199 Grassland and meadows 3 Grassland and meadows 3 Grassland and meadows 7828 79 POLYGON ((627911.368 5595749.375, 627942.033 5...
4 9 3 Grassland and meadows 31 Grassland and meadows 319 Grassland and meadows 3199 Grassland and meadows 3 Grassland and meadows 3 Grassland and meadows 3197 39 POLYGON ((633236.525 5596165.100, 633397.286 5...

2. Get “pixel ratio” for each polygons

Pixel ratio = number of 10m pixels belonging to specific crop type divided by the total number of 10m pixels

$ pix_ratio = \frac{crop\_pix}{total\_pix} $

All polygons from a same class will have the same pixel ratio !

[7]:

gdf['crop_pix'] = gdf.groupby(field_classif_code)['pix_count'].transform('sum')

gdf['pix_ratio'] = gdf['crop_pix'] / gdf['pix_count'].sum()

display(gdf.head())
id lc_nb lc grp_nb grp class_nb class sub_nb sub grp_1_nb grp_1 grp_A_nb grp_A area pix_count geometry crop_pix pix_ratio
0 4 3 Grassland and meadows 31 Grassland and meadows 319 Grassland and meadows 3199 Grassland and meadows 3 Grassland and meadows 3 Grassland and meadows 1735 17 MULTIPOLYGON (((630003.573 5594258.004, 630003... 23889 0.222207
1 5 3 Grassland and meadows 31 Grassland and meadows 319 Grassland and meadows 3199 Grassland and meadows 3 Grassland and meadows 3 Grassland and meadows 14331 146 POLYGON ((636962.589 5595674.757, 636966.536 5... 23889 0.222207
2 6 3 Grassland and meadows 31 Grassland and meadows 319 Grassland and meadows 3199 Grassland and meadows 3 Grassland and meadows 3 Grassland and meadows 1768 18 POLYGON ((635692.119 5593303.601, 635688.405 5... 23889 0.222207
3 7 3 Grassland and meadows 31 Grassland and meadows 319 Grassland and meadows 3199 Grassland and meadows 3 Grassland and meadows 3 Grassland and meadows 7828 79 POLYGON ((627911.368 5595749.375, 627942.033 5... 23889 0.222207
4 9 3 Grassland and meadows 31 Grassland and meadows 319 Grassland and meadows 3199 Grassland and meadows 3 Grassland and meadows 3 Grassland and meadows 3197 39 POLYGON ((633236.525 5596165.100, 633397.286 5... 23889 0.222207

3. Assign sampling design strategy for each polygons

The polygons that are selected for the classification are used either for the calibration of the classifier model or for the validation of the results. Even though the classification is run per-pixel, this split needs to be done at the polygon-level to ensure a proper independent validation following international standards.
This split at the polygon-level is done into 3 steps:

  • the smallest polygons are automatically NOT considered for the calibration and thus assigned to the validation pool;

  • for each class, the number of training pixels \(crop\_target\) is defined considering the size of the class;

  • calibration polygons are randomly selected to reach this \(crop\_target\) value and the remaining polygons are allocated to the validation.

Strategy 1 — majority classes

By default, the majority classes are defined as those counting a number of 10m pixels corresponding to more than 5% (pix_ratio_threshold) of the total number of pixels considering all classes to map.

Crop type belongs to strategy 1 if :

\(pix\_ratio ≥ pix\_ratio\_threshold\)

In this case, for each majority class, the number of training pixels \(crop\_target\) will correspond to 25% of the number of pixels of the class (crop_pixels) :

\(crop\_target = sample\_ratio\_hi \times crop\_pix\)

Strategy 2 — minority classes

The minor classes are defined as those counting a number of S2 pixels corresponding to less than 5% of the total number of pixels considering all classes to map.

Crop type belongs to strategy 2 if :

\(pix\_ratio < pix\_ratio\_threshold\)

In this case, for each minor class, the number of training pixels \(crop\_target\) will correspond to 75% of the number of pixels of the class :

\(crop\_target = sample\_ratio\_lo \times crop\_pix\)

[9]:

# Assign sampling design strategy for each polygons
# -------------------------------------------------

gdf['strategy'] = np.where(gdf['pix_count'] < pix_best, 3,
                           np.where(gdf['pix_ratio'] >= pix_ratio_threshold, 1, 2))


# Build a table to summarize the strategy assign to each class
df = gdf[[field_classif_code,field_classif_name,'crop_pix','pix_ratio','strategy']].drop_duplicates()
df = df[df['strategy'] != 3].sort_values('pix_ratio', ascending=False)

display(df)


# Split polygons in training and validation datasets
# --------------------------------------------------

training_pixels = defaultdict(lambda: 0)
training_target = {}

cal_id_list = []
val_id_list = []

gdf_shuffle = gdf.sample(len(gdf), random_state=1)  # Shuffle geodataframe randomly

for i, row in gdf_shuffle.iterrows():

    id          = row['id']
    crop_code   = row[field_classif_code]
    crop_pix    = row['crop_pix']
    strategy    = row['strategy']
    pix_count   = row['pix_count']

    if strategy != 3:
        if strategy == 1:
            crop_target = sample_ratio_hi * crop_pix
            training_target[crop_code] = crop_target

        elif strategy == 2:
            crop_target = sample_ratio_lo * crop_pix
            training_target[crop_code] = crop_target

        pixels = training_pixels[crop_code]

        if pixels + pix_count <= crop_target:  # If below crop target, add polygons in training set
            training_pixels[crop_code] = pixels + pix_count  # Update number of training pixels by crop code
            purpose = 0  # training

        else:
            purpose = 1  # validation because "crop target" is reached
    else:
        purpose = 1  # validation because polygons do not contain enough pixels (= strategy 3)

    if purpose == 0:
        cal_id_list.append(id)
    else:
        val_id_list.append(id)


print(f'Number of polygons for training   : {len(cal_id_list)}')
print(f'Number of polygons for validation : {len(val_id_list)}')

cal_gdf = gdf[gdf['id'].isin(cal_id_list)]

val_gdf = gdf[gdf['id'].isin(val_id_list)]
grp_1_nb grp_1 crop_pix pix_ratio strategy
221 1111 Winter wheat 29633 0.275635 1
0 3 Grassland and meadows 23889 0.222207 1
295 1121 Maize 8667 0.080617 1
331 1811 Sugar beet 7400 0.068832 1
352 1152 Barley six-row 6659 0.061940 1
441 1511 Potatoes 6439 0.059893 1
376 1192 Other cereals 6117 0.056898 1
411 1771 Peas 3606 0.033542 2
502 69 Forest 3109 0.028919 2
403 1923 Flax hemp and other similar crops 2810 0.026138 2
455 21 Fruits trees 2239 0.020826 2
421 1435 Rapeseed 1826 0.016985 2
466 81 Urban 1795 0.016696 2
409 121 Leafy or stem vegetables 1351 0.012567 2
394 1171 Oats 776 0.007218 2
434 1911 Alfalfa 554 0.005153 2
429 84 Greenhouses 252 0.002344 2
462 9212 Permanent rivers and streams 208 0.001935 2
372 22 Vineyards 178 0.001656 2
Number of polygons for training   : 205
Number of polygons for validation : 332

Get summary of the CAL/VAL splitting

[10]:

# Get number of pixels per class

pix_per_class_cal_df = cal_gdf.groupby([field_classif_code, field_classif_name])['pix_count'].agg('sum').to_frame().reset_index()
pix_per_class_cal_df = pix_per_class_cal_df.sort_values(by='pix_count', ascending=False)
pix_per_class_cal_df = pix_per_class_cal_df.rename(columns={"pix_count": "CAL_pix"})

pix_per_class_val_df = val_gdf.groupby([field_classif_code, field_classif_name])['pix_count'].agg('sum').to_frame().reset_index()
pix_per_class_val_df = pix_per_class_val_df.sort_values(by='pix_count', ascending=False)
pix_per_class_val_df = pix_per_class_val_df.rename(columns={"pix_count": "VAL_pix"})

# Get number of polygons per class

poly_per_class_cal_df = cal_gdf.groupby([field_classif_code, field_classif_name])[field_classif_code].agg('count').reset_index(name='poly_count')
poly_per_class_cal_df = poly_per_class_cal_df.sort_values(by='poly_count', ascending=False)
poly_per_class_cal_df = poly_per_class_cal_df.rename(columns={"poly_count": "CAL_poly"})

poly_per_class_val_df = val_gdf.groupby([field_classif_code, field_classif_name])[field_classif_code].agg('count').reset_index(name='poly_count')
poly_per_class_val_df = poly_per_class_val_df.sort_values(by='poly_count', ascending=False)
poly_per_class_val_df = poly_per_class_val_df.rename(columns={"poly_count": "VAL_poly"})


# Merge 2 previous dataframe in a single one
#pix_poly_per_class_df = pix_per_class_cal_df.merge(poly_per_class_df, on=[field_classif_code, field_classif_name], how="outer")


# Merge 4 previous dataframe in a single one
summary_df = pix_per_class_cal_df.merge(pix_per_class_val_df,on=[field_classif_code, field_classif_name]).merge(poly_per_class_cal_df,on=[field_classif_code, field_classif_name]).merge(poly_per_class_val_df,on=[field_classif_code, field_classif_name])

display(summary_df)
grp_1_nb grp_1 CAL_pix VAL_pix CAL_poly VAL_poly
0 1111 Winter wheat 7403 22230 15 59
1 3 Grassland and meadows 5971 17918 60 161
2 1771 Peas 2454 1152 8 2
3 69 Forest 2296 813 28 7
4 1121 Maize 2132 6535 10 26
5 1923 Flax hemp and other similar crops 2059 751 5 3
6 1811 Sugar beet 1850 5550 4 17
7 1152 Barley six-row 1663 4996 8 12
8 1511 Potatoes 1577 4862 4 10
9 21 Fruits trees 1551 688 6 1
10 1192 Other cereals 1477 4640 7 10
11 81 Urban 1338 457 27 9
12 1435 Rapeseed 1176 650 4 2
13 121 Leafy or stem vegetables 566 785 2 2
14 1171 Oats 534 242 5 3
15 1911 Alfalfa 403 151 4 3
16 84 Greenhouses 183 69 3 2
17 9212 Permanent rivers and streams 152 56 3 1
18 22 Vineyards 124 54 2 2

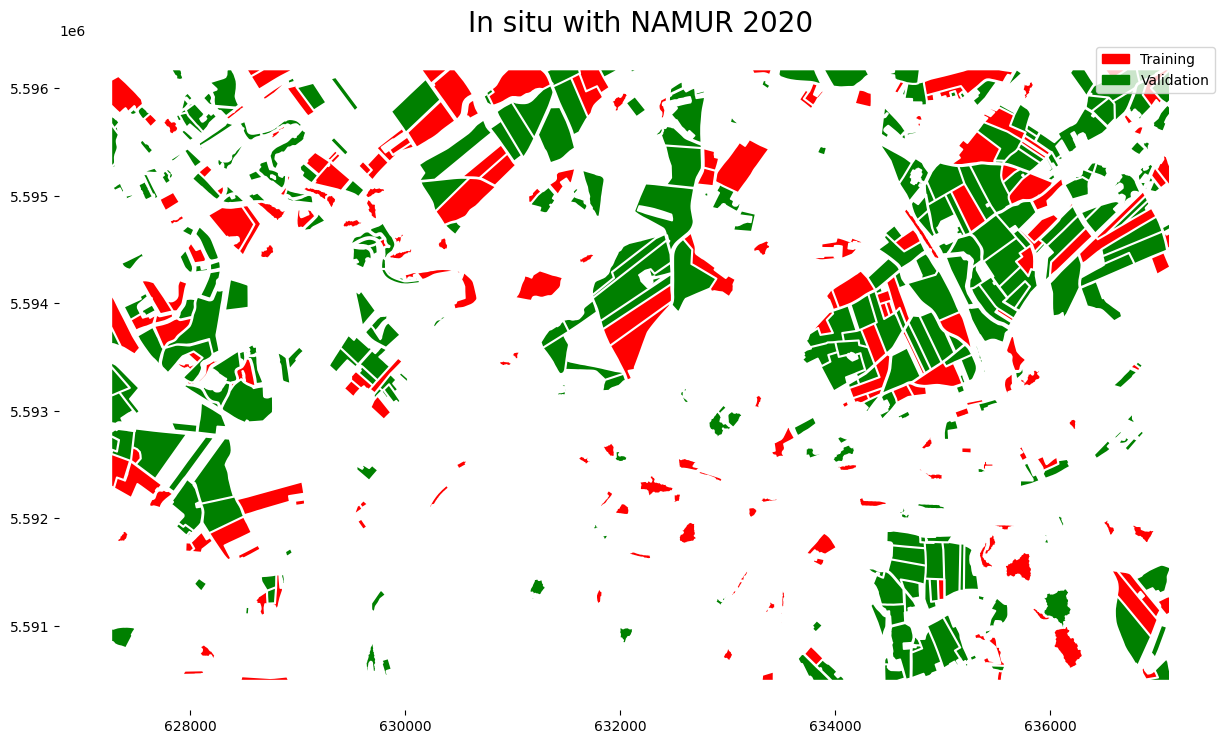

Plot calibration and validation in situ data

[11]:

fig, ax = plt.subplots(1, 1, figsize=(15,15))

cal_gdf.plot(ax=ax,
            color='red')

val_gdf.plot(ax=ax,
            color='green')

ax.set_title(f'In situ with {site} {year}',fontsize=20)

cal_patch = mpatches.Patch(color='red', label='Training')
val_patch = mpatches.Patch(color='green', label='Validation')


plt.legend(handles=[cal_patch, val_patch])

plt.box(False)
../_images/classification_in_situ_split_cal_val_complex_strategies_17_0.png

Write geodataframe into a shapefile

[13]:

cal_gdf.to_file(in_situ_cal_shp)
val_gdf.to_file(in_situ_val_shp)

print(f'Two shapefiles have been created :\n {in_situ_cal_shp} \n {in_situ_val_shp}')

Two shapefiles have been created :
 /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/C_IN_SITU_CAL_VAL/NAMUR_2020_IN_SITU_ROI_CAL.shp
 /export/miro/ndeffense/LBRAT2104/STUDENTS/GROUP_99/TP/C_IN_SITU_CAL_VAL/NAMUR_2020_IN_SITU_ROI_VAL.shp
